Colt Cam Stage 5

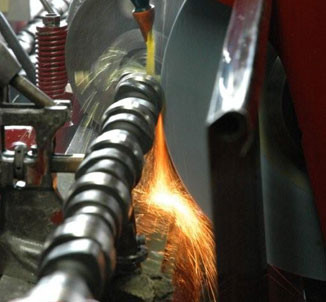

Image 1
Roll over image to zoom
MSRP Our Price $749.00

Weight
25.00 LBS
Shipping
Free Shipping

Quantity:

Colt Cam Stage 5

Cummins 5.9 and 4BT Cam Specs

Duration
Cam
Lift
Lobe
Sep
ROCKER RATIOS:
12V - 1.75/1 INT/EXH
24V - INT 1.5/1 EXH 1.4/1
Prof. I.D.#   @ .050 ADV.
  INT.
159°

0.235
102.0
Stock 2nd Generation 12V 1994-1998.5
  EXH.
204°

0.263


  INT.
159°

0.235

107.5
Stock 2nd Generation 24V 1998.5-2002
  EXH.
206°

0.297


  INT.
163°

0.237
98.5
Stock 24V C.R. 2003-2007
  EXH.
191°

0.299


Stage 1 INT.
175°

0.251
103.0
Hi Torque, bottom end fuel economy cam.
 C.332.S EXH.
206°

0.297

DISCONTINUED
Stage 2 INT.
175°

0.251
104.0
New torquer cam. Better exhaust flow and better fuel economy.
 C.341.S EXH.
210°

0.307

$325.00 USD (regrind price).
Stage 3 INT.
181°

0.280
106.0
"The Big Stick". Our most popular drop in cam. Best for all round' power.
 C.343.S EXH.
210°

0.307

$375.00 USD (regrind price), $599.00 USD new cast billet.
Stage 4 INT.
181°

0.280
107.5
Straight drop in, good to 4400 rpm.
C.346.S EXH.
218°

0.323

$649.00 USD, new cast billet.
Stage 5 INT.
199°

0.296
108
Valve clearance required, good to 5000 rpm.
C.349.S EXH.
218°

0.323

$699.00 USD, new cast billet.
Stage 6 INT.
228°

0.329
108.5
Valve clearance required. Full race / sled pull, good to 6000 rpm.
C.784.S EXH.
244°

0.338

$849.00 USD, new cast billet.

NOTE: ALL THESE GRINDS ARE RUN ON THE 4BT AS WELL. The cost is approximately
$60.00 USD less on re-grinds and new cast billets compared to the 6 cylinder.

NOW AVALIABLE: COLT CAM'S OWN LINE OF NEW TAPPETS, ONLY $160.00 USD A SET!


Valve lash all grinds: INT: .010" EXH .020" cold.

  • Follow Cummins installation instructions, use adequate amounts of assembly lube.
  • Retainer torque 44 ft lbs – use red loctite.
  • When using our retainer, clearance is required on C.R.
  • Always use new or re-crowned lifters! The cost for us to re-crown yours is $75.00 USD.
  • IMPORTANT NOTES:
    • C.R. cams cannot grind to stage 3, only to 1 and 2. You must use 24V 2nd core or new cast billet cams for anything over stage 2 grinds.
    • When using our new Big Stick Cast Billets, use 2nd gen. 24V lifters only. (From 1998.5 – 2002, use Cummins Part #3942565.)
    • If using C.R. lifters with larger head, (also heavier) make sure it clears the fuel pump lobe on # 5cyl., especially on the 12V engines. C.R. blocks are ok but you should still check. If your gear is not pressed on all the way, the lifters could touch.

CAUTION! IF USING AFTER MARKET CONNECTING RODS,
EXTRA CLEARANCE MAY BE REQUIRED ON CAM CORE!


When sending us your camshaft(s),
please remove the gear(s) before shipping, and
we highly recommend not to ship your camshaft in tubes!


BREAK IN PROCEDURE
  • Cam Lube on all lobes, lifter faces and oil pump gears.
  • Oil all bearing journals and lifter barrels.
  • Always turn engine over by hand before starting, check for clearances and proper timing location.
  • Fire up to 1800 – 2000 rpm. for 18 – 20 minutes.

Note: Most oil companies have taken out a percentage of additives that are meant for anti-scuffing for break in on flat tappet cams, so please ask your local auto parts professional for the best zinc additive they have and add it to your oil before you fire up your engine for the first time. (We prefer ZDD Plus.)
